HOME >>Led Light >>LED Panel Light >>HH-PL6060-27W
Loading...
Item No:HH-PL6060-27W
Desc:27w Led Panel Light, 600*600mm



  • Ultra-thin design, saving energy
  • The five-year period of use.
  • Wide voltage AC170-240V
  • Quick start, no flicker, without noise
  • The latest high efficiency constant current driver
  • Professional circuit design, each group of LEDs work separately so that can avoid a single bad light affect the overall light effect.
  • Anti-radio interference, in line with CE requirements.
  • Lead-free, green, in line with ROHS requirements.
  • No RF interference


Optical parameters

NO

Item

Parameter

1

Model? No

HH-PL6060-27W

2

Input Voltage

AC170-240V

3

Operating voltage

36V

4

Input power

27W

5

Luminous Flux

3700lm

6

Luminous efficiency

140lm/w

7

Color Temperature

2700-6500k

8

Color Rendering Index

80

9

LED Qty

264PCS

10

LED Type

SMD2835

11

Life-span

50000 Hours

12

Operating Temperature

-20oC 50oC

13

Storage Temperature

-20oC 60oC

14

Net weight/Gross weight

4.1 KG/4.7KG

15

IP Grade

IP40

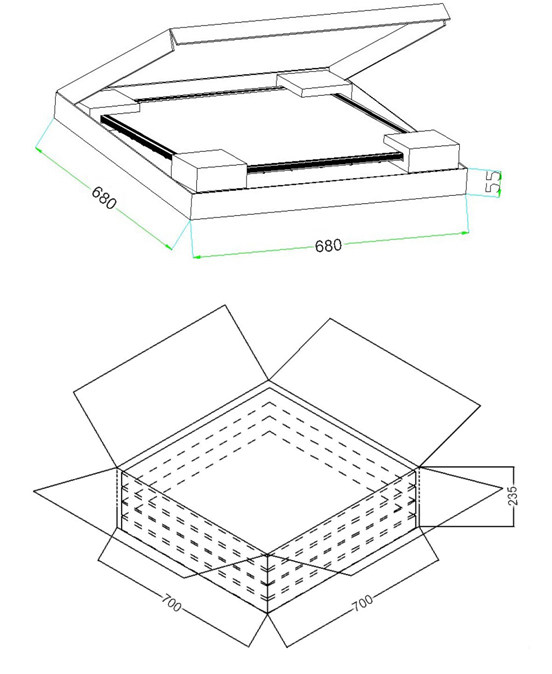

Packaging schemes

Packing Size:
Inner Box:68068055mm (1pcs/box) Net Weight:4.1KG Gross Weight: 4.7KG
Carton: 700700235mm (5pcs/carton) Net Weight: 23.5KG Gross Weight: 25.7KG
5boxes packed in a Carton



HH-PL6060-27W
HH-PL6060-27W
HH-PL6060-27W

Item No:HH-PL6060-27W
OEM is wellcome!
27w Led Panel Light, 600*600mm
HH-PL6060-27W
